Lea Alhilali: Do Radiologists Sound Like They Are Speaking a Different Language When They Talk About MRI

Lea Alhilali, Program Director of Neuroradiology Fellowship at Barrow Neurological Institute, shared a post on X:

“Do radiologists sound like they are speaking a different language when they talk about MRI?

T1 shortening what? T2 prolongation who?

Here’s a translation w/an introductory thread to MRI.

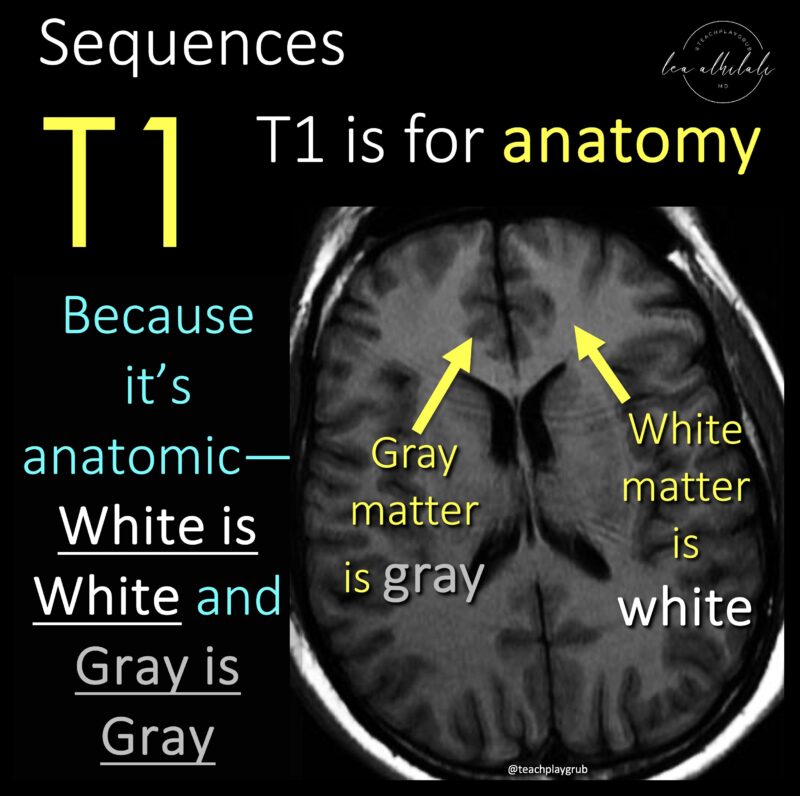

Let’s start w/T1—it is 1 after all! T1 is for anatomy

Since it’s anatomic, brain structures will reflect the same color as real life

So gray matter is gray on T1 and white matter is white on T1

So if you see an image where gray is gray & white is white—you know it’s a T1.

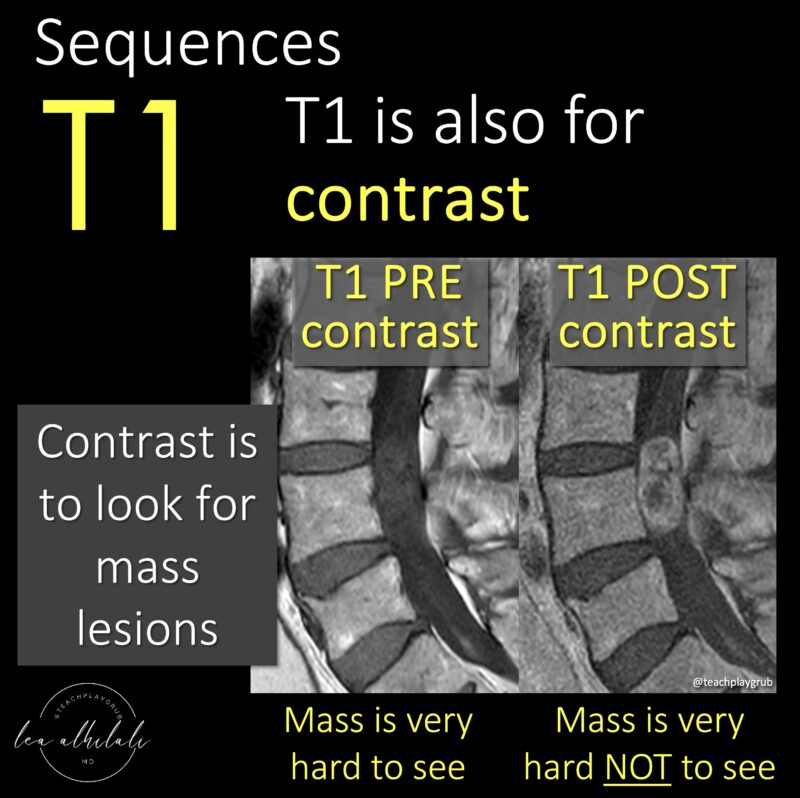

T1 is also for contrast

Contrast material helps us to see masses

Contrast can’t get into normal brain and spine bc of the blood brain barrier—but masses don’t have a blood brain barrier, so when you give contrast, masses will take it up & light up, making them easier to see.

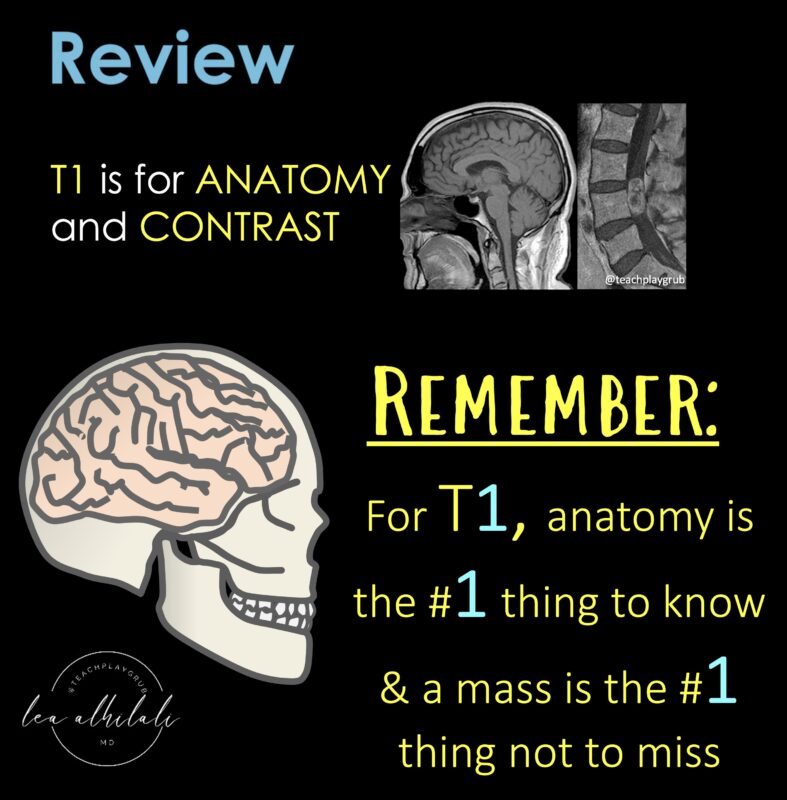

So to review, T1 is for anatomy and contrast

I remember this bc anatomy is the number 1 thing a radiologist needs to know and a mass is the number 1 thing a radiologist doesn’t want to miss.

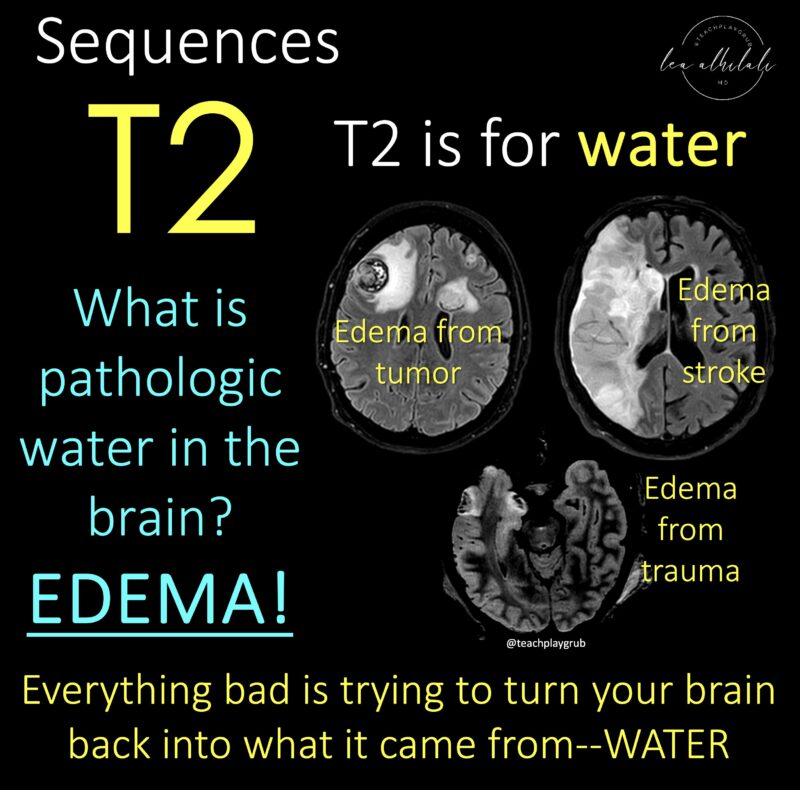

Now to T2!

T2 sequences are water sensitive sequences

What is pathologic water in the brain? Edema!

My attending once said, “Everything bad in this world is trying to turn you back into what you came from—water”

So T2 shows you edema—but this edema can be from many things

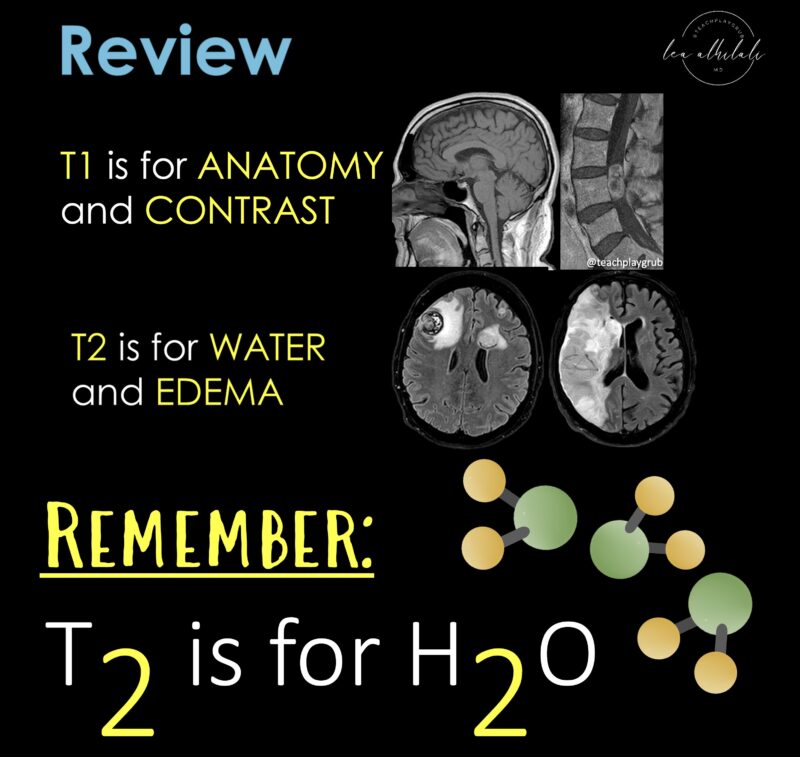

To review:

T1 is for anatomy and contrast

T2 (and FLAIR, which is a type of T2) is for water—which is bright on T2.

I remember this bc H20 has a 2 in it—T2 is for H20!

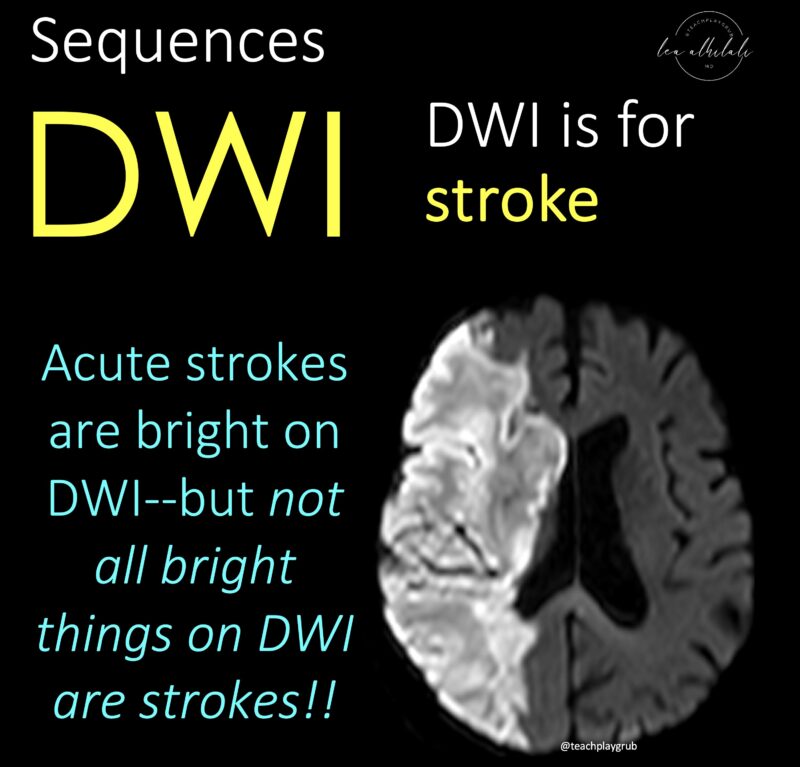

Next to diffusion or DWI.

Diffusion is primarily to detect stroke. Acute strokes are bright on diffusion.

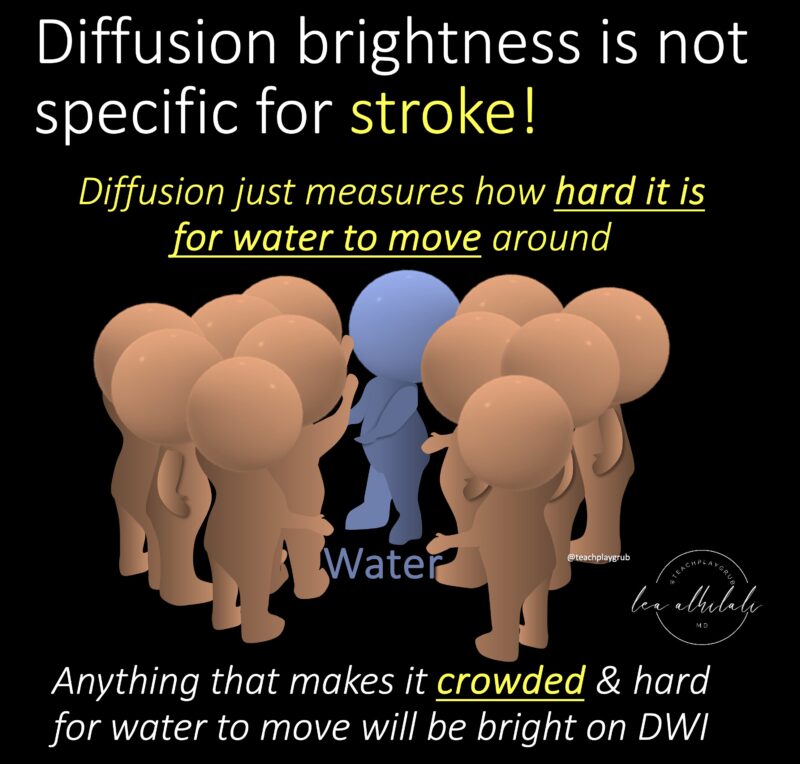

But just as all that glitters is not gold, not all that is bright on DWI is an acute stroke.

This is bc all diffusion does is detect how difficult it is for water to move

Anything that makes the space around water crowded and difficult to move will be bright on diffusion imaging

So classically, it’s from a stroke

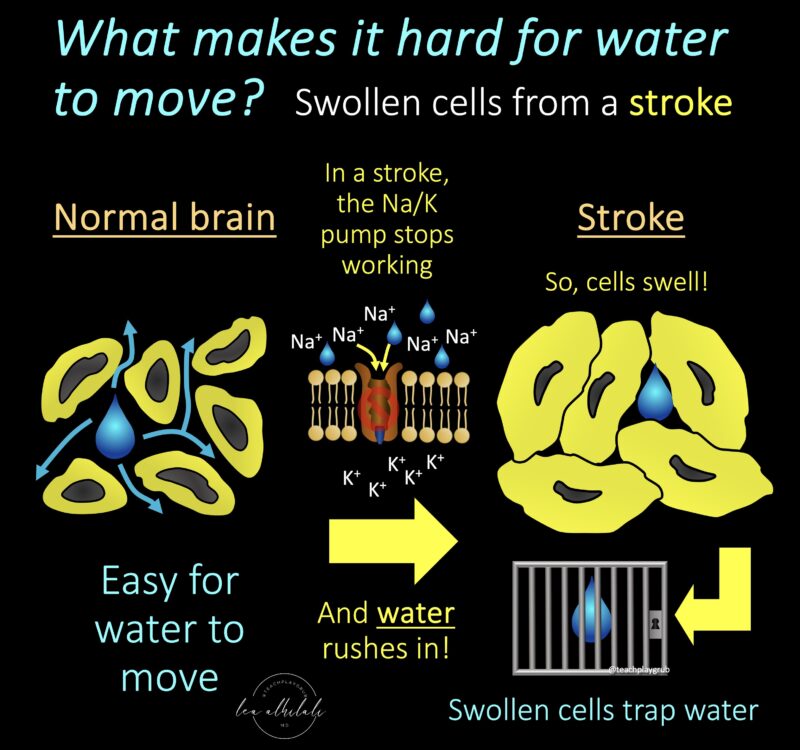

When cells run out of ATP, the Na/K pump stops working and immediately water rushes in from osmotic pressure and cells swell

These swollen cells fill the interstitium and restrict the movement of water. This is why strokes are bright on DWI!

But other things can make it crowded and difficult for water to move

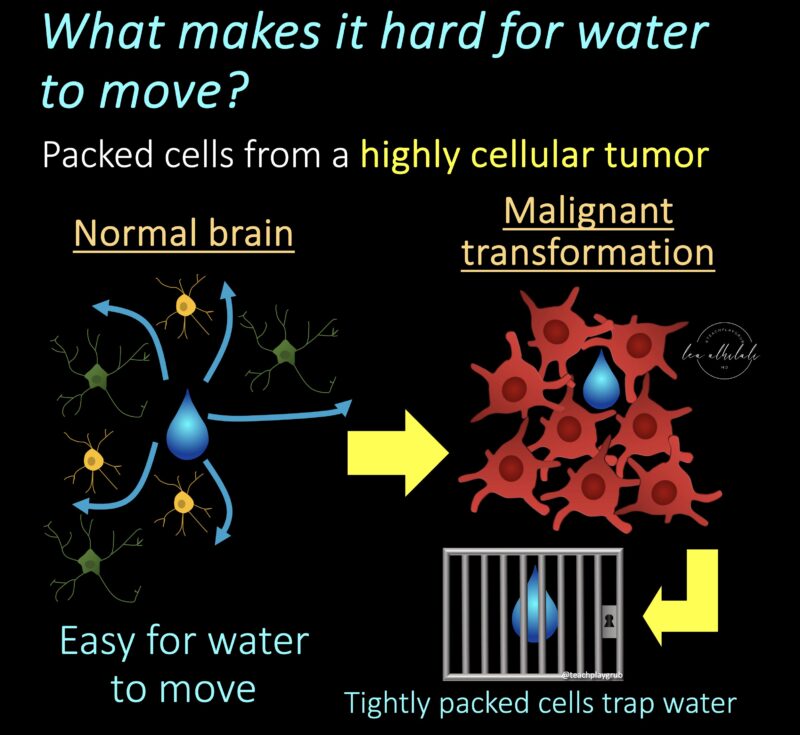

For example, tightly packed cells in aggressive tumors will also fill spaces & make it difficult for water to move—it’s trapped between the tumor cells!

So highly cellular tumors are often bright on DWI

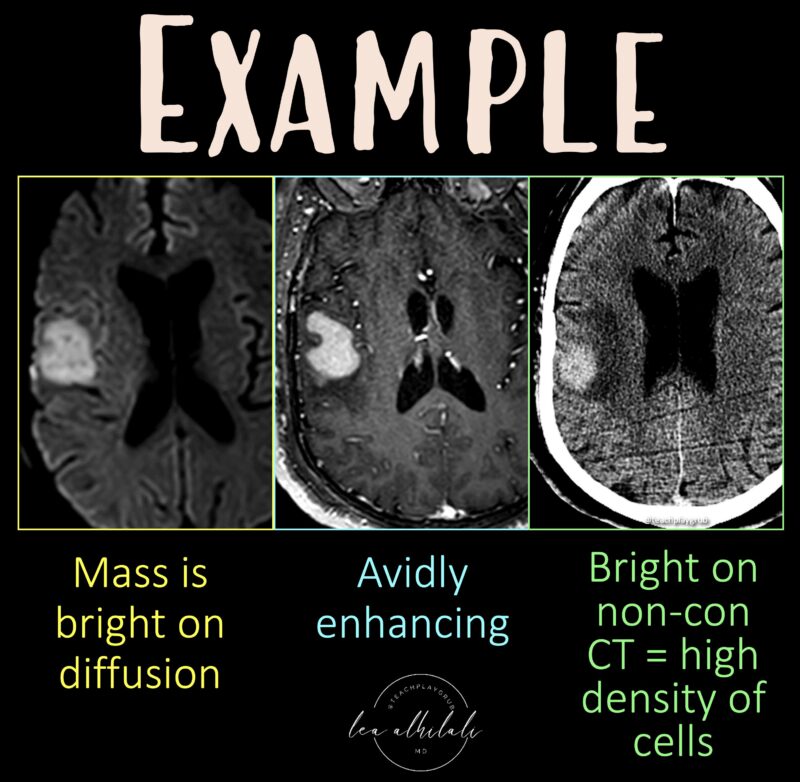

Here’s an example

Here is a mass that is as bright as stroke on diffusion bc of its densely packed cells

On contrast images, we see it avidly enhance, as we would expect for a mass

On CT, the tumor is very dense bc of the densely packed cells.

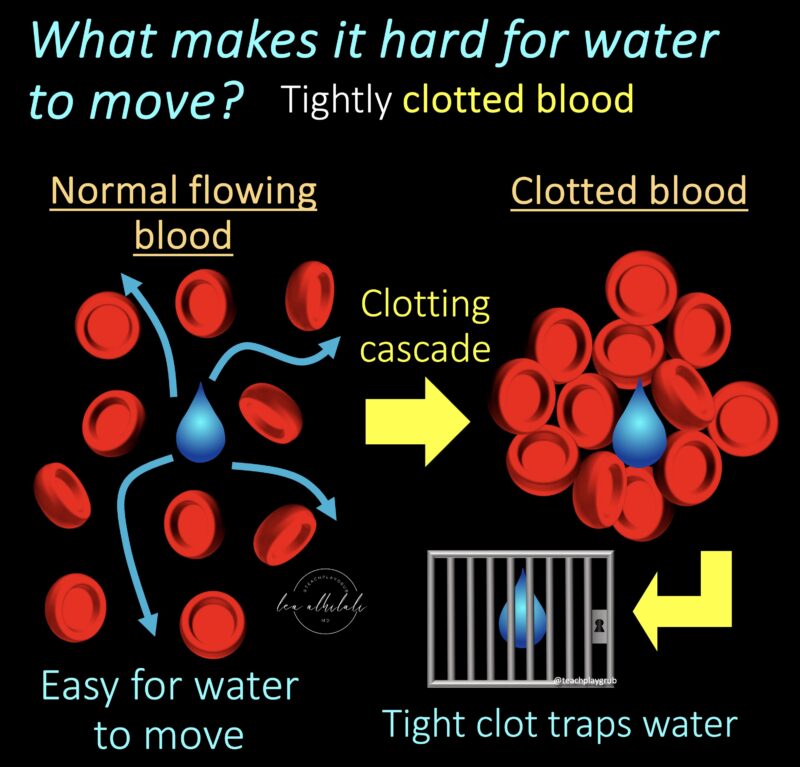

Hematomas are also bright on DWI

In normal blood, water flows happy and free—but once the clotting cascade starts and fibrin and thrombin and whatever stuff I don’t remember as a radiologist clumps everything together, things get tight—water is trapped in the clot interstices!

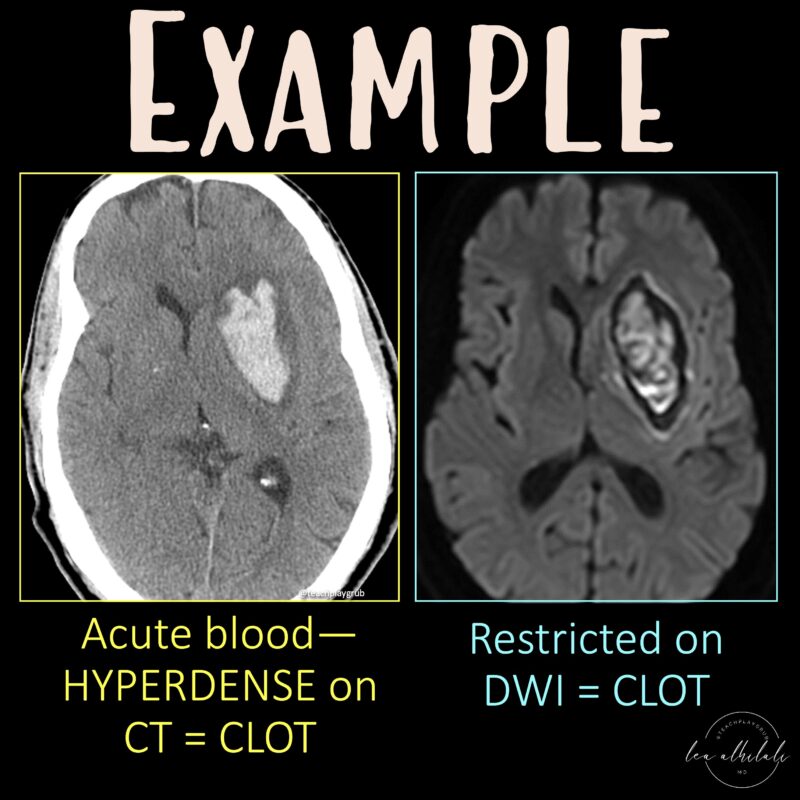

Here’s an example

The hemorrhage is bright on CT bc it is clotted, and thus more dense than the brain and CSF, which are closer in density to water.

For this same reason, the hemorrhage is bright on diffusion—bc the dense clot traps the water.

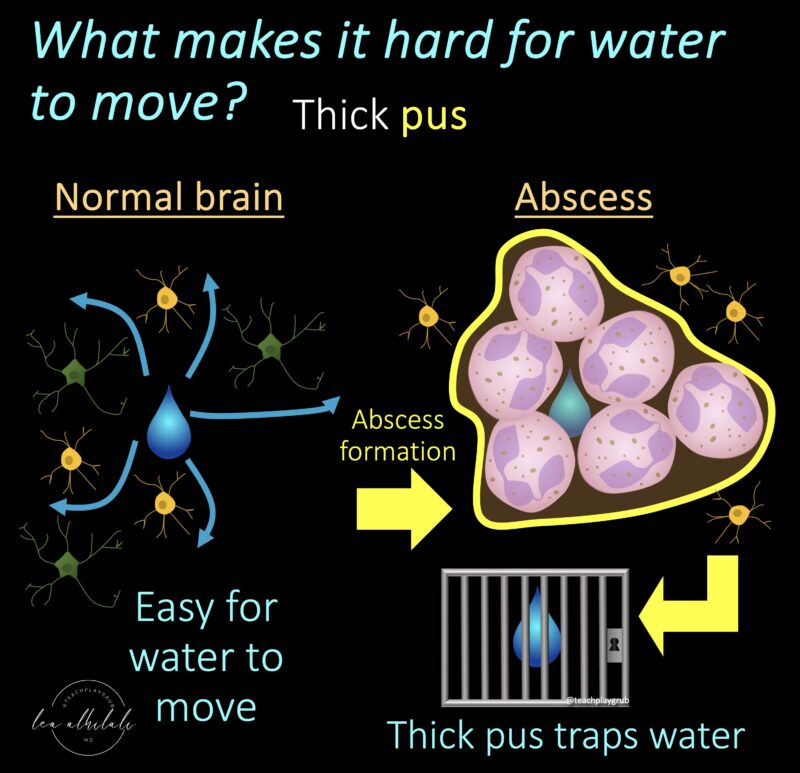

Pus is also bright on diffusion

As a radiologist I don’t often see pus, but as a mom, I sure do!

It is thick and gooey and you can just imagine how difficult it is for water to travel through that gelantinous blob of pus.

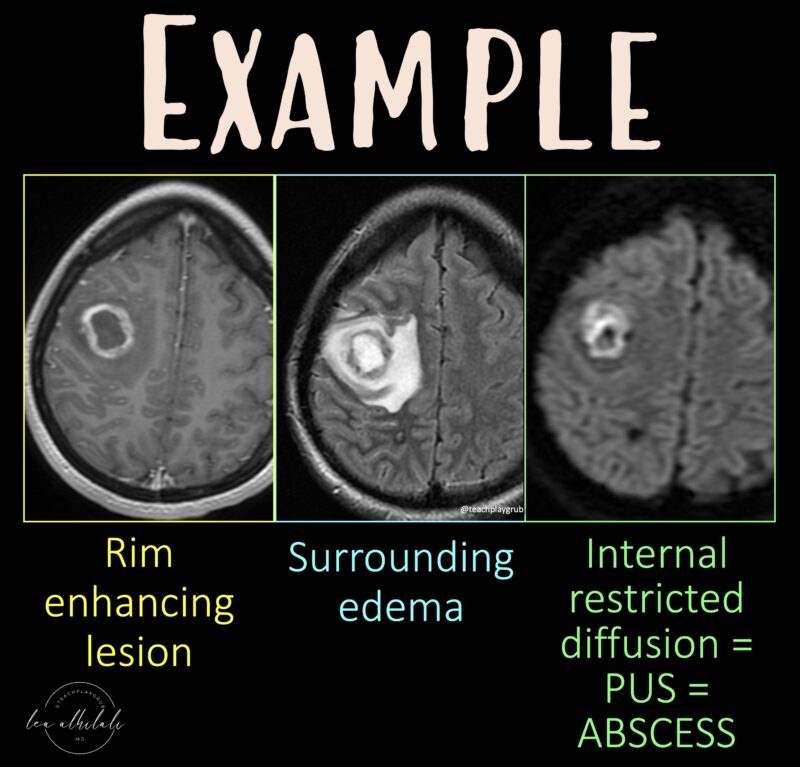

Here’s an example

There’s a ring enhancing lesion w/a lot of edema on T2

Centrally, there is restricted diffusion, meaning that there is something gooey or thick or dense centrally

Bc this central stuff doesn’t enhance, we know it’s not a mass. This is pus in an abscess!

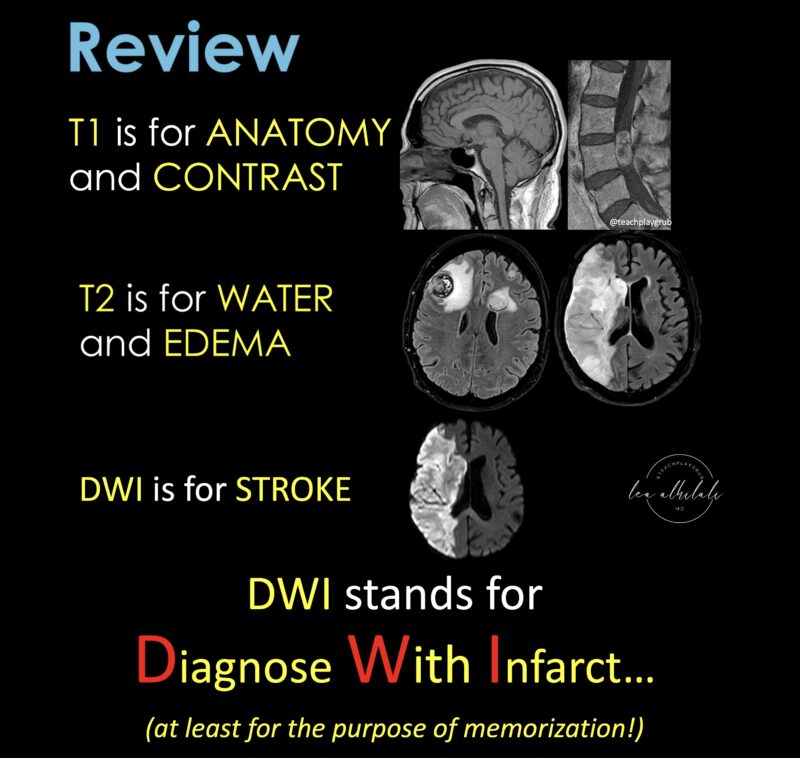

So to review:

T1 is for anatomy and contrast

T2 is for water and edema

DWI is for stroke

I remember DWI stands for Diagnose With Infarct!

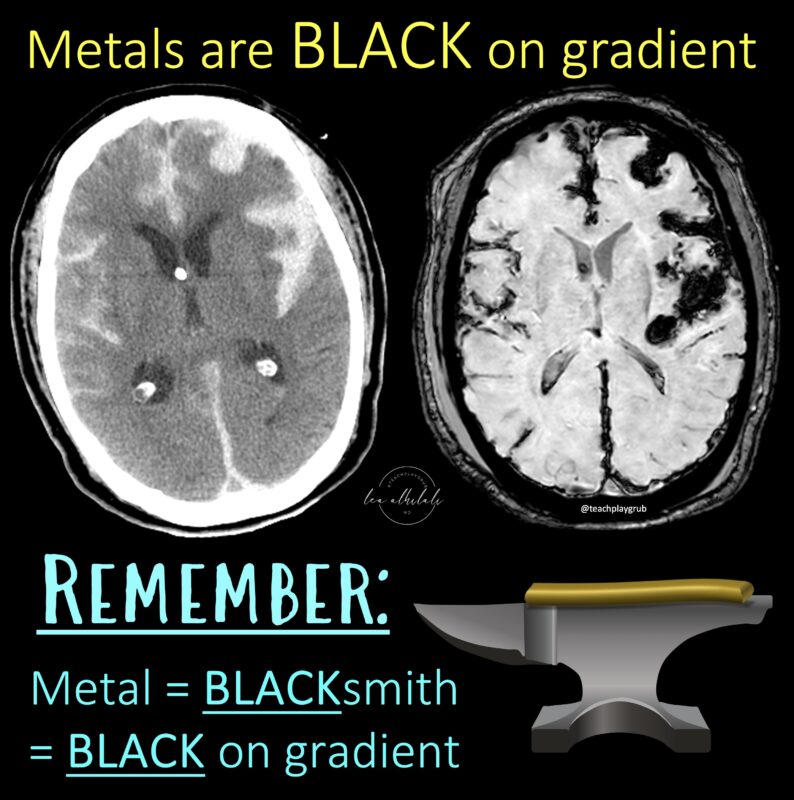

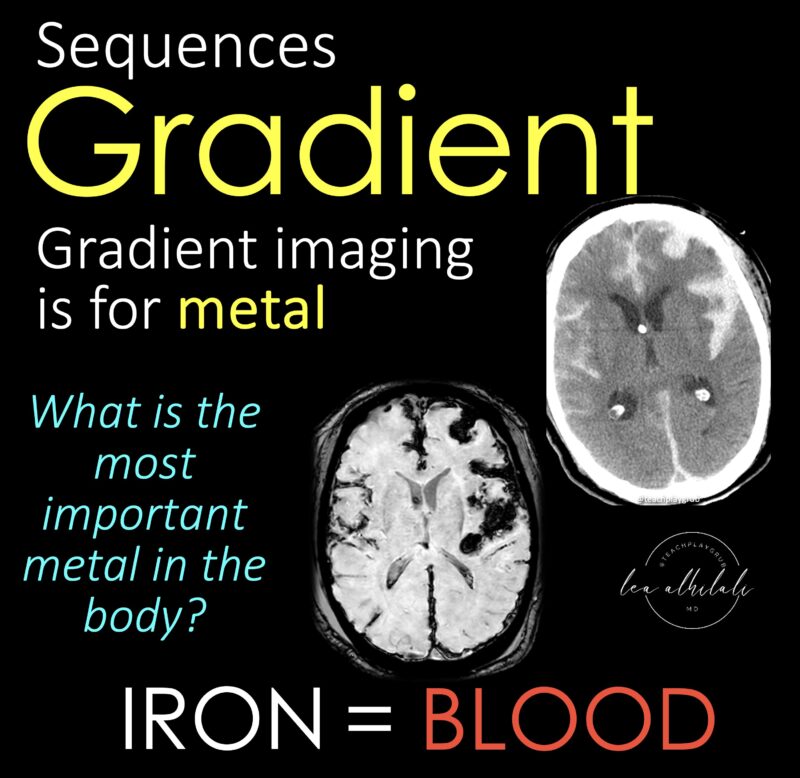

Last but not least is gradient imaging

Gradient imaging is sensitive to metals

And what’s the most important metal in body? Iron!! Because iron is in blood!

So gradient is our blood sensitive sequence

Blood is black on gradient

I remember this bc gradient is for metal—and when I think of metal, I think of blacksmiths forging metal products

So BLACKsmith=metal is BLACK on gradient.

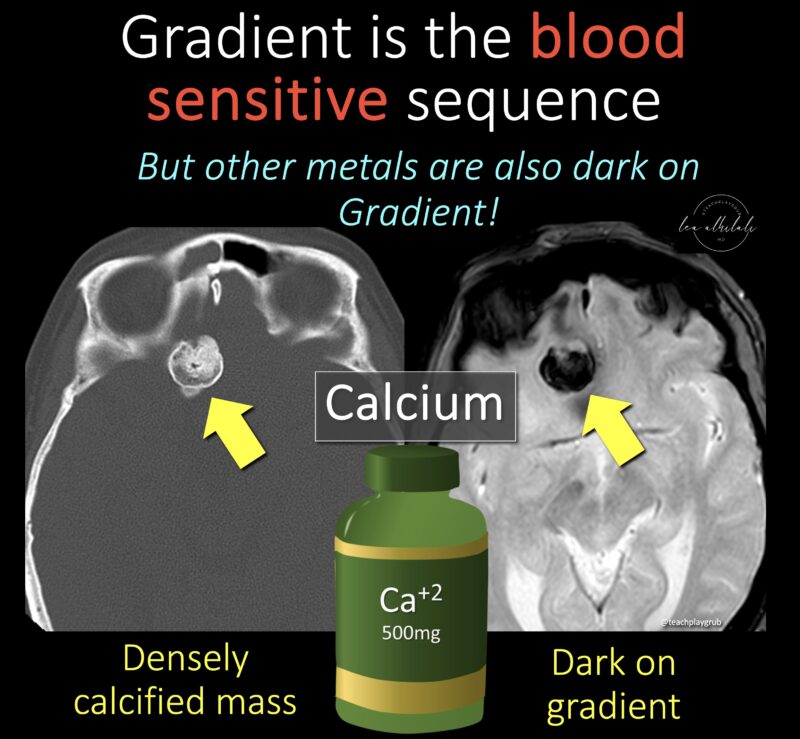

But other metals will be black too.

Notably, calcium, which is in our bones and in many other lesions

So remember, just all that glitters is not gold, not all that is black on gradient is blood—other metals are black too.

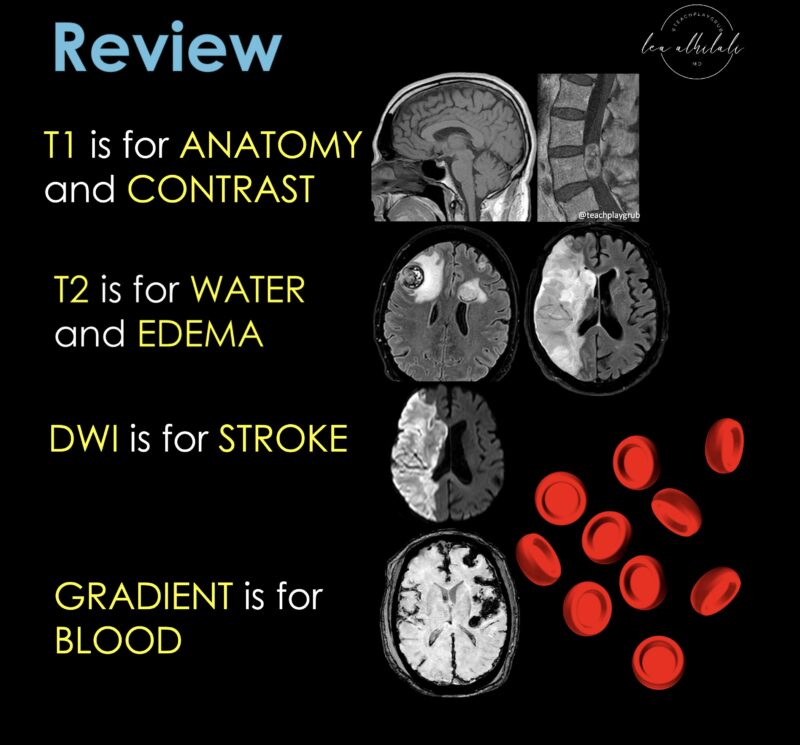

So now you know the basic MRI sequences and what they are used for!

So hopefully now, the radiologist won’t sound like they are speaking a different language when they talk to you—they will just be nerdy and socially awkward when they do!
